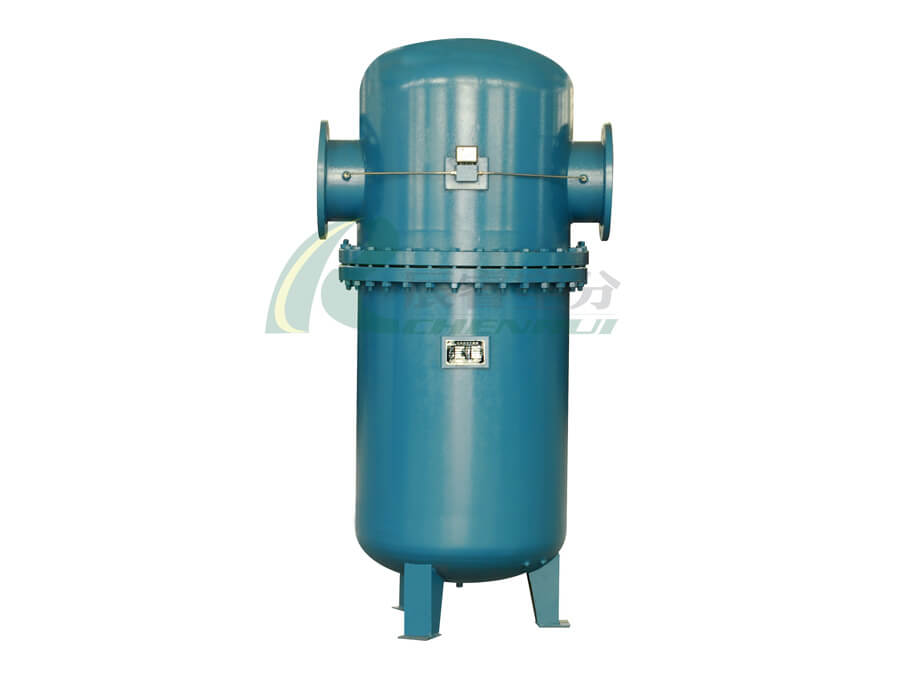

product description

Dust fine filter is a new generation of compressed air filter product line, with high efficiency, long life, low operating cost of outstanding performance. The product is developed by our newly developed filter, which is characterized by compact, small size, high efficiency, easy to replace the installation, a fundamental guarantee for the use of results.

working principle

Dust fine filter mainly by the cylinder, the next cylinder, filter components, filter boom components, instruments and other components. Compressed air containing dust, water, etc. enters the container from the filter inlet and passes through the cylindrical core from the outside to the inside. In the combined filter bed of direct interception, inertial collision, gravity sedimentation and other filtration mechanism under the combined effect of further capture small mist particles and to promote the process of passing through the filter bed, resulting in cohesion, and ultimately in the inner one gravity Sedimentation layer to achieve gas and liquid separation of dust particles, droplets, dust particles discharged from the sewage outfall.

Products using a condensing filter mechanism elaborate filter components, the high degree of purification, resistance, filter capacity of dust, long life, the overall structure of compact, easy operation and maintenance.

Technical indicators

Working pressure: 0.6-1.0Mpa (1.0-3.0Mpa available upon request)

Intake temperature: ≤ 50 ℃

Pressure loss: ≤ 0.02Mpa

Export dust particle size: ≤ 0.01μm
