product description

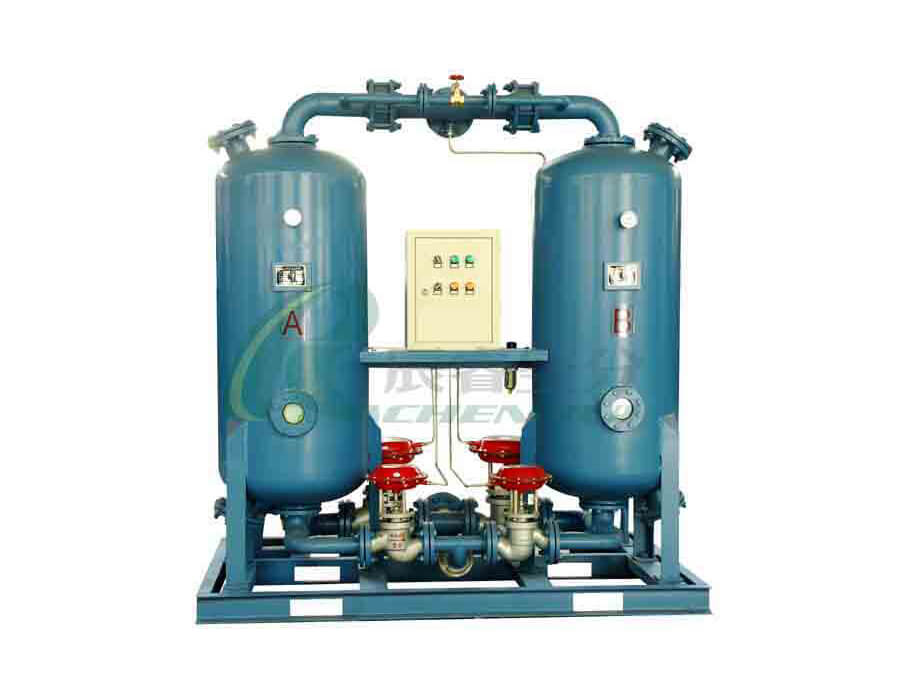

Non-heat adsorption compressed air dryer is the use of pressure swing adsorption principle, the use of non-thermal regeneration of compressed air drying equipment. Using the new pneumatic valve and PLC intelligent process control device and other advanced technology, with automatic timing, automatic switching, working state simulation and regeneration of gas consumption, and other characteristics.

Technical characteristics

1, the use of safe and reliable control components to ensure that the controller output signal safe and accurate instructions to reach the target.

2, the use of microcomputer control, digital display two towers running alternately.

3, to ensure stable and reliable product dew point, low energy consumption.

4, simple and elegant structure, user-friendly design, easy operation and maintenance.

5, a variety of fault alarm.

6, advanced variable procedures, stable and reliable.

7, equipped with RS485 / RS232 intermodal interface, can be remote communication, centralized monitoring and air compressor joint control.

Technical indicators

Working pressure: 0.6-1.0Mpa (on request to provide 1.0-1.3Mpa)

Inlet temperature: 50 ° C

Finished gas Dew point: ≤-40 ℃ (alumina) ≤-52 ℃ (molecular sieve)

Regeneration air consumption: ≤ 12%

Pressure loss: ≤ 0.02Mpa

Operating cycle: 10min
